NEWS MESSAGE

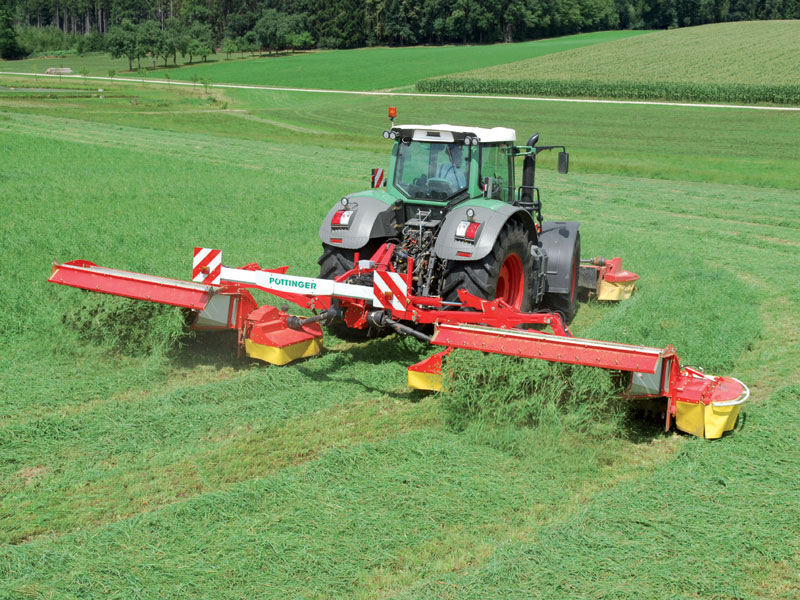

New: NOVACAT V10
Largest, mounted mower combination for all applications
The Pöttinger NOVACAT mower combinations have already made a name for themselves on the market for their operating efficiency and reliability. Now Pöttinger has raised the performance bar even further: the new NOVACAT V10 high-capacity mower is setting new standards and is the only mower combination in its class that can be mounted on a three-point linkage. A technical masterstroke.
The special feature is the working width optimisation which permits flexible adaptation to different front-mounted mowers and to the different operating conditions on slopes, when cornering and when mowing large areas on the level. The difference from conventional mower combinations where the working width is fixed: these offer only a limited capability for overlap with the front-mounted mower. When cornering sharply, therefore, strips can be left unmown.
NOVACAT V10, by contrast, corners excellently:
The hydraulic lateral displacement system integrated in the extending arms permits optimisation of the working width. The mower units can therefore each be offset by +/- 200 mm / 7.87” so that there is an overlap with the front-mounted mower of 200 – 600 mm / 7.874 – 23.62”. Furthermore, the two linkage positions permit a combination with 3 m or 3.50 m / 9.84 or 11.48 feet front-mounted mowers. Depending on the operating conditions, therefore, the maximum working width can always be used, which greatly increases the implement’s operating efficiency.
The best-possible ground adaptation to protect the sward is the Pöttinger’s quality benchmark and this is achieved in the NOVACAT V10 mower combination via a hydraulic floating system. This means that the ground pressure can be adjusted quickly and easily.
 Drive via special triple-telescopic drive shafts |
 Best ground adaptation via a hydraulic floating system |
Your benefits at a glance
- Extremely high operating efficiency
- Optimisation of mowing width by means of variable overlap - Optimum flexibility for every operation
- Unrivalled on slopes, when cornering and for mowing large areas
- Perfect ground hugging thanks to their central mounting - Excellent adaptability
- Two linkage positions for 3 m or 3.50 m / 9.84 or 11.48 feet front-mounted mowers - Reliable operation
Outstanding ease of operation:
POWER CONTROL easy-to-use control panel
- ISOBUS-compatible as standard
- Setting of the overlap between the front mower and the mower combination
- Easy offsetting of both mowers to right or left when operating across the slope
- Perfect adjustment of the hydraulic floating system for different operating conditions
- Headland management, individual raising of the mower units and an area meter are also included
Created: 28.09.2007
